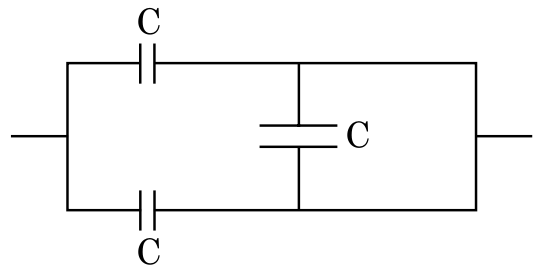

The equivalent capacitance of the combination shown in the figure is:

To find the equivalent capacitance of the given combination, we need to analyze the circuit.The circuit consists of three capacitors, each with capacitance Step 1: Identify the configuration of the capacitors.⢠The top and bottom capacitors are in parallel.⢠The middle capacitor is in series with the parallel combination.Step 2: Calculate the equivalent capacitance of the parallel capacitors.Step 3: Calculate the equivalent capacitance of the series combination.The series combination includes and the middle capacitor Therefore, the equivalent capacitance of the combination is This corresponds to Option 2.
