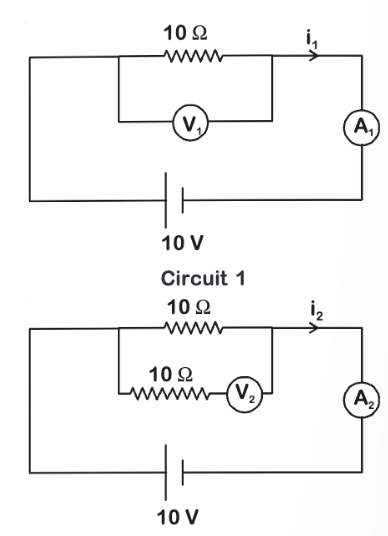

In the circuits shown below, the readings of voltmeters and the ammeters will be:

medium

Current Electricity

2019

physics

$V_2 > V_1$ and $i_1 = i_2$

$V_1 = V_2$ and $i_1 > i_2$

$V_1 = V_2$ and $i_1 = i_2$

$V_2 > V_1$ and $i_1 > i_2$

Explanation

To solve this problem, we need to analyze both circuits. $\\$ Circuit 1: $\\$ • The circuit consists of a single 10 $\Omega$ resistor connected to a 10 V battery. $\\$ • The current $i_1$ through the circuit can be calculated using Ohm's Law: $\\ i_1 = \frac{V}{R} = \frac{10}{10} = 1$
